Washington, DC Lot Survey Requirements for Tight Urban Building Projects

Posted on July 22, 2026 by Washington DC Surveyor

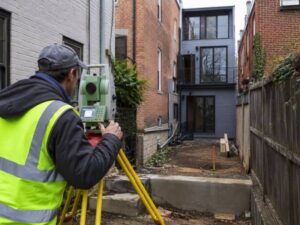

A lot survey is the starting point for almost any building project on a tight city parcel. When a house sits inches from its neighbors and the yard barely exists, every measurement carries weight. The survey shows where the property lines run, where the walls sit and how the lot meets the space around it. Getting that picture right keeps a project legal and keeps a builder out of a fight with the folks next door.

Matching the Survey Scope to the Proposed Building Work

The kind of survey a project needs depends on what the owner plans to build. A rear addition, a basement dig-out and a new deck each call for different measurements and different levels of detail. A survey scoped for one may fall short for another.

The building work sets the priorities. Underpinning a foundation demands close attention to the neighbor’s walls, while a facade change may focus on the front of the lot and the public space beyond it. Areaways, rear structures and decks each add their own concerns.

Talking through the plan first saves money. When the surveyor knows the exact project, they gather what the design will need and skip what it won’t. A vague request often leads to a return visit for a missed detail.

Locating Party Walls and Improvements Near Lot Lines

On a tight lot, the walls sit right on top of the boundary questions. A party wall shared with a neighbor may straddle the line, and the survey records where its faces sit. Where the wall’s thickness can be determined, that goes on the record too.

Small features near the line matter more than their size suggests. Projections, foundations, fences and narrow access strips can all cross or crowd a boundary. On a lot with almost no spare room, an inch either way can decide whether a design fits.

The survey captures these carefully. It shows how close the existing walls and features sit to the lines, which the design has to respect. That detail keeps a new addition from encroaching on a neighbor.

Distinguishing Private Lots from Public-Space Features

In many older city blocks, the private lot ends before the sidewalk begins, and features in between belong to the public. Sidewalks, vaults under the walk, steps and tree boxes can all sit in public space rather than on the owner’s land. The survey draws that line clearly.

This distinction shapes what an owner can and can’t do. A structure that reaches into public space may need a separate permission that a private-lot project does not. Knowing where the public area starts keeps a design on the right side of that rule.

The survey maps these features so the design team sees them plainly. Retaining walls, areaways and projections toward the street all get located. A clear picture of public versus private space prevents a costly misstep.

Recording Elevations Needed for Constrained Design

Heights matter as much as boundaries on a cramped lot. The survey records thresholds, basement levels, yards, alleys and curb heights so the design can work within them. A few inches often decide whether a floor lines up or a ramp fits.

Neighboring grades come into the picture too. The ground next door affects drainage and how a new structure meets the lots around it. The survey captures these so water and access get handled correctly.

Coordinating Survey Updates as the Design Changes

A design rarely stays fixed from start to finish. As plans shift, the footprint moves and new details come into play, and the survey may need to catch up. Building on an outdated survey invites a mistake.

Updates keep the base current. A surveyor can add detail, verify a changed layout or provide construction layout as the project moves forward. Each update ties back to the same control so nothing drifts.

This coordination protects the whole job. A design revised three times still needs a survey that matches its final shape. Keeping the two in step avoids building to a plan the ground no longer supports.

Frequently Asked Questions

Is a lot survey required for every renovation?

Not always. A simple interior update may need no survey at all, while an addition, a foundation change or work near a lot line usually does. The trigger is whether the project touches the boundaries, the walls or the space around the building. A surveyor can tell you which category a project falls into.

Can a survey determine ownership of a party wall by itself?

No. A survey shows where a party wall sits in relation to the property line, but ownership and shared rights come from deeds and the law. The measurement is one piece of the answer. Settling who owns or controls the wall often takes a title or legal review alongside the survey.

Should public-space features appear on the project survey?

Yes. Features like sidewalks, vaults and steps near the street affect the design and any permissions the project needs. Showing them lets the design team account for the line between private and public land. Leaving them off can hide a requirement until it’s too late.
