Washington, DC Lot Survey Guidance for Building on Alley Properties

Posted on July 28, 2026 by Washington DC Surveyor

A lot survey on an alley property answers the first question any owner has: can I actually build here? Alley lots are a real category of buildable land in older cities. They sit behind the main street frontage and reach the outside world through an alley rather than a conventional road. That arrangement creates unusual questions about access, boundaries and buildable areas. A careful survey answers them before an owner spends money on design that a reviewer might reject.

Confirming the Legal Limits of the Alley Lot

The boundary work on an alley lot starts with the record. These parcels were often created by odd historical divisions, so the surveyor pulls the deed, the original subdivision, prior surveys and the records of everything around the lot. Alley lots frequently share boundaries with the rear lines of several street-facing properties.

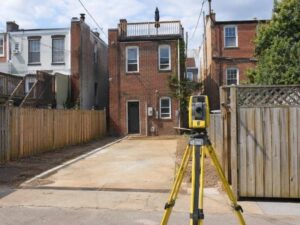

Fieldwork tends to be tight and difficult. Crews search for corner markers in a space hemmed in by buildings, fences and pavement on every side. Many original markers are gone, buried or paved over, so the surveyor reconstructs corners from whatever reliable evidence survives, checked against the recorded dimensions.

The result establishes exactly what the owner controls. That certainty matters more on an alley lot than on an open parcel, because a few feet in any direction can decide whether a buildable footprint exists at all.

Measuring the Width and Alignment of Alley Access

Access is the defining feature of an alley lot, so the survey measures it closely. Crews record the alley’s width along its length, since older alleys narrow and widen in ways that affect whether vehicles, and more importantly emergency vehicles, can reach the property.

Recorded width and traveled width often differ. The alley may be platted at fifteen feet while fences and buildings have squeezed the usable path to ten. The survey shows both, because zoning and building rules usually reference the legal width while access depends on the physical one.

Alignment matters too. An alley that jogs, bends or changes width as it approaches the lot affects how a driveway or garage can be positioned. Turning space becomes a real constraint when a car has to reach a rear parcel through a narrow, crooked path. Measured alignment lets a designer test whether access actually works.

Locating Party Walls, Fences, and Close Encroachments

Alley lots sit surrounded by other people’s buildings, which makes close measurements essential. Crews locate party walls, adjoining foundations, fences and any structure sitting on or near the boundary. On a constrained lot, a wall a few inches off the line changes the whole design.

Party walls raise a specific question. A wall shared with a neighbor may sit exactly on the line, mostly on one side, or entirely on one parcel. The survey shows where the wall actually sits, though the legal rights in a shared wall come from recorded agreements rather than the measurement alone.

Encroachments in both directions get documented. A neighbor’s addition may extend over the boundary, or an existing structure on the alley lot may cross onto adjoining ground. Those findings shape what a new project can do and flag issues an owner needs to resolve early.

Calculating Available Yard and Open-Space Areas

Zoning on a small alley lot lives and dies on area calculations. The survey provides the measured lot area, then breaks down how much of it various rules consume. Required open space, permeable area and yard setbacks all subtract from what’s left to build on.

Those numbers decide the project’s scale. A lot that appears large enough may lose most of its buildable area to setbacks once the surrounding buildings and required yards get accounted for. The survey shows the remaining envelope clearly, which lets an owner see what’s realistic before hiring an architect.

Precise areas also support the zoning application itself. Reviewers check lot area, coverage and open space against measured figures, so an exhibit built on accurate survey data moves through review with fewer questions.

Preparing a Survey Base for Permit Drawings

The survey becomes the foundation the design gets built on. Architects and engineers draw their plans directly over it, so its accuracy determines whether the permit set reflects reality. On a constrained alley lot, small errors compound into designs that won’t fit.

The base includes everything a designer needs: the boundary with dimensions, the alley access, the surrounding buildings, the party walls, the elevations and the utility features the crew could locate. That complete picture lets the design team work without returning to the site repeatedly.

The information stays relevant through permitting. Reviewers compare proposed work against the surveyed conditions, and designs shift during review. Keeping the survey base current as the project evolves ensures the drawings stay tied to the actual lot rather than an early approximation.

Frequently Asked Questions

Can a lot survey confirm that an alley property is buildable?

It provides the facts that determine buildability, though it doesn’t grant approval. The survey establishes the boundary, the access width, the surrounding conditions and the available area. A designer and the zoning authority use that information to decide whether a specific project meets the rules. The survey is what those decisions rest on.

How does a surveyor determine the official width of an alley?

By researching the records that created it, including the original plat, dedication documents and any later changes. Those documents state the legal width, which the surveyor then compares against the physical width measured in the field. When the two differ, the survey shows both so designers and reviewers can work from the correct one.

Do existing fences establish the legal boundary of an alley lot?

Not on their own. Fences frequently sit off the true line, sometimes by a foot or more, because they were built by eye or replaced over the years. The legal boundary comes from the recorded evidence and the surviving monuments. The survey compares the fence line against that boundary and reports any difference.
