Vertical datum checks prevent a frustrating problem where two correct sets of elevations refuse to agree. A new building has to connect to sidewalks, curbs and utilities that were built and measured years ago, sometimes on a different height system. If the new work and the old infrastructure speak different elevation languages, the numbers clash even when both are right. Catching that mismatch early keeps a project from building to the wrong height.

Why Two Correct Elevation Sets Can Still Conflict

An elevation is only meaningful against the datum it uses. Two surveys can each be internally perfect yet disagree, because they are measured from different starting points. A number that reads 42.0 on one system might read 40.5 on another for the same spot.

Several causes create this gap. Different datums, assumed benchmarks and old conversion values all leave their mark. A legacy project reference set decades ago may not match anything in use today.

The trouble hides until the systems meet. As long as a project stays inside its own numbers, everything agrees. The conflict surfaces when new work has to tie into infrastructure measured in a different way.

Identifying the Datum Used by Each Project Record

Before reconciling anything, the surveyor has to know which datum each record uses. Plan notes, benchmark descriptions and survey metadata often name it. When they do, the work gets much simpler.

Missing information is common and dangerous. An old drawing may list elevations with no mention of the datum behind them. The surveyor then has to investigate rather than assume, since guessing wrong corrupts the whole tie-in.

Agency standards help narrow it down. A public works department usually specifies which datum its infrastructure uses. Matching a record to that standard is a strong clue to what system it belongs to.

Verifying Published Benchmarks in the Field

A datum lives on the ground through published benchmarks, and those have to be checked. The surveyor confirms a mark’s identity, its condition and whether it can still be reached. A benchmark that moved or got buried can’t be trusted.

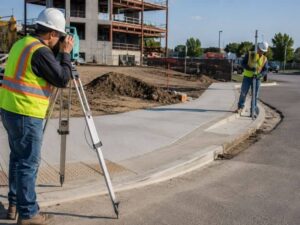

Field measurement proves the mark is sound. Differential leveling and GNSS checks test whether the benchmark still holds its published value, and comparing several marks reveals any that have drifted. Every conversion depends on solid, verified benchmarks, so skipping this check risks tying the new work to a mark that lies.

Testing Proposed Grades at the Private-Public Interface

The connection points are where a datum error does the most damage. Curbs, sidewalks, entrances, ramps and drainage outlets all have to meet the public infrastructure at the right height. A small mismatch here can send water the wrong way or leave a step where a ramp should be.

The surveyor tests the proposed grades against the verified elevations. A ramp that looks fine on paper gets checked against the real curb height it must meet. Catching a conflict now beats discovering it after the concrete cures.

These interface points deserve extra care. Vaults, utility connections and entrances each carry their own tolerance. Confirming them all keeps the new work flush with what it joins.

Documenting Datum Reconciliation for Every Project Team

Once the datums are sorted, the reconciliation has to be written down. Conversion values, equations and benchmark sheets record exactly how the systems relate. This paperwork lets everyone measure from the same base.

Revised files carry the fix forward. Updated CAD files and clear notes replace the mixed elevations that caused the trouble. A written confirmation to each team removes any doubt about which system to use.

Good documentation prevents a repeat. Without it, the next crew might reintroduce the very mismatch the surveyor solved. A clear record keeps the whole project on one height system from start to finish.
