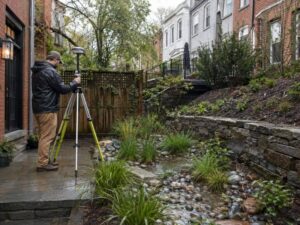

Topographic Survey in Washington, DC: Rain Garden or Retaining Wall?

Posted on August 28, 2026 by Washington DC Surveyor

A stubborn slope forces a choice. Water pools where it shouldn’t, or a grade change needs holding back, and a property owner starts weighing a rain garden against a retaining wall. A topographic survey should come before that choice, because a rain garden and a retaining wall solve very different problems. One manages water, the other manages grades, and picking wrong wastes money. Accurate ground data shows which problem the site actually has.

Existing Grades as the Starting Point for Stormwater Design

Stormwater design starts with the shape of the ground as it is today. A rain garden needs the right low spot to collect and soak in water, while a retaining wall needs a real grade change to hold. Without measured grades, both options are just hopeful guesses.

A topographic survey supplies those grades before any decision hardens. It maps the highs, lows, and slopes across the site so the design fits the land. When the ground data comes first, the choice between the two solutions rests on facts rather than a gut feeling about where water seems to go.

Where Does Runoff Travel Before Any Site Improvements Are Added?

Before a single improvement goes in, water already follows a path across the property. Spot elevations, curbs, walls, paved areas, and downspout locations all shape that path. Reading them together reveals where runoff moves now.

That current picture is the honest starting point. A rain garden placed off the natural flow line will sit dry, and a wall built where water isn’t the problem solves nothing. So mapping the existing drainage first tells the owner where water actually goes, which then guides where any fix belongs.

Dense Urban Grade Breaks and Surface Features

City lots pack a lot of grade change into a small space. Steps, stoops, areaways, sidewalks, curbs, low walls, and pavement transitions all create breaks in the surface. Each one nudges water in a direction and shapes what a stormwater fix can do.

A topographic survey catches those features in detail. On a dense urban site, that detail changes the design, since a single curb or step can redirect flow more than the overall slope does. Capturing them gives the design team an accurate base instead of a smoothed-over version that hides the real behavior of the site.

Can a Topographic Survey Show Whether a Rain Garden Fits the Site?

A survey can show a lot about whether a rain garden fits, though it can’t answer everything alone. The grades reveal whether a suitable low area exists and how water reaches it. Visible conditions show what’s already in the way.

Still, some pieces sit outside the survey. Soil infiltration decides how fast water actually soaks in, and utilities may limit where digging is safe. Final stormwater design pulls those factors together. So the survey gives strong evidence about fit, and further professional review confirms the rest.

Survey Deliverables That Support Rain-Garden and Wall Design

The deliverables from a topographic survey give the design team what they need for either option:

Spot elevations that pin down heights at key points across the site
Contours that show the overall shape and slope of the ground
Breaklines that mark sharp grade changes like walls and curbs
Visible improvements such as steps, pavement, and structures
Coordinate information that ties the survey to a consistent framework

With these in hand, a designer can test a rain garden and a wall against the same accurate base. The spot elevations show whether water collects where a garden would go, and the breaklines show where a wall would actually hold grade. That shared foundation makes the final choice clearer and easier to defend.

Frequently Asked Questions

What is the difference between a topographic survey and a boundary survey?

A topographic survey maps the shape of the land, including elevations, slopes, and visible features. A boundary survey defines the legal property lines using deeds, plats, and monuments. They answer different questions, one about terrain and one about ownership. A project sometimes needs both, but they aren’t interchangeable.

Does a topographic survey locate underground utilities?

Not on its own, since a topographic survey focuses on the visible surface. It records what shows above ground, like manhole covers, meters, and drainage structures. To map buried lines, a team relies on utility records and field locating services. The survey can note surface clues that point toward where those checks belong.

Do I need a topographic survey before installing a rain garden?

It’s a strong idea, because a rain garden depends on grades and drainage patterns. The survey shows whether a suitable low area exists and how water reaches it. Without that data, a garden can end up in the wrong spot and fail to collect runoff. The measured ground gives the design a real foundation.

Can a topographic survey tell me whether soil drains well?

No, a topographic survey measures the surface, not the soil below it. How fast water soaks in depends on soil type and testing, which is a separate task. The survey shows where water travels and collects on top of the ground. A soil evaluation answers the infiltration question the survey can’t.

Should neighboring grades be included in the survey?

Often yes, since water doesn’t stop at a property line. Grades on nearby land can send runoff onto or off of the site. Including a strip of neighboring elevation helps the design account for that flow. The right extent depends on the project, so the surveyor and designer set it together.
