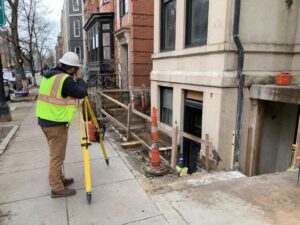

Topographic Survey Before Excavating Below an Existing Urban Building

Posted on June 21, 2026 by Washington DC Surveyor

Digging deeper in a crowded city carries real risk. You work close to foundations, sidewalks, utilities, and adjacent structures. A topographic survey gives you accurate elevations and ground conditions before anyone breaks ground. It provides the facts engineers and contractors need to design safely and protect everything around the work area.

Establish Reliable Vertical Control Before Excavation

You need a fixed reference point to measure all elevations. That point must be permanent and located far enough from the work to stay stable. Surveyors tie the project to known benchmarks so every measurement shares the same standard. Engineers use those numbers to design excavation depth, foundation support, and drainage.

Without clear vertical control, measurements can be wrong by several inches or more. That leads to designs that do not fit the site. You may dig too deep or not deep enough. You may create drainage that flows toward the building instead of away. Establishing control first ensures every subsequent measurement lines up correctly. The surveyor sets permanent marks that contractors can reference throughout the job.

Survey the Surface Conditions Around the Excavation Area

Excavation affects more than just the hole. Sidewalks, curbs, entrances, steps, and walls all connect to the ground around the building. Their elevations determine how water flows and how safely people move. The topographic survey measures these features and their heights. It shows existing slopes, pavement levels, and connections to surrounding areas.

Engineers use this information to design the new work so it matches existing grades. They ensure steps and entrances stay at the right height. They design drainage that connects to public systems. They avoid creating steps or slopes that violate accessibility rules. If you skip this survey, you may find too late that the new basement entrance sits too low or water flows toward the building.

Basement Work May Need More Than a Typical Surface Survey

Digging below an existing building means working near foundations and underground utilities. A standard topographic survey shows what you can see above ground. Basement excavation may also need utility locating and foundation elevation measurements. Coordinate the full scope with your engineer and contractor before work begins.

Tell the surveyor what you plan to do. Let them know the proposed depth and whether you will extend walls or foundations downward. They may need to measure foundation tops, basement floors, or visible footing elevations. They may also need to note utility covers, pipe inverts, or underground structures. A scope tailored to your project avoids gaps in critical data. You get exactly the information needed to design safely.

Adjacent Structures Can Require Separate Monitoring Work

Excavation can change ground conditions nearby. Soil may shift. Foundations may settle. Walls may crack. Watching these changes closely during construction is called monitoring. Monitoring measures movement over time. It is a separate service from a topographic survey.

The topographic survey provides baseline elevations before work starts. That baseline is essential for later comparison. But monitoring needs repeated measurements and specialized setup. If your project sits close to other buildings or walls, ask your engineer whether monitoring should be part of the plan. The topographic survey alone does not track movement during excavation. It simply gives you the starting point.

Preserve Control Points Throughout Construction

Survey marks disappear easily during digging. Equipment runs over them. Digging removes them. Once lost, they cannot be recreated without returning to the original benchmarks. That delays work and adds cost. Protect control points from the start. Mark them clearly and tell the contractor not to disturb them.

If a mark must be moved, ask the surveyor to relocate it properly. Do not let workers guess elevations from partial marks. Every elevation should trace back to the original control. Keeping those marks intact means contractors can verify depths and grades as work progresses. It also means you have reliable reference points for future projects or repairs.
