Slope and Drainage Clues Found Through Topographic Survey Mapping

Posted on July 9, 2026 by Washington DC Surveyor

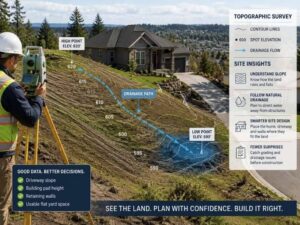

A topographic survey maps the shape of the land, every rise, dip and slope, so you know what you are working with before a single plan gets drawn. From the street, a lot can look flat and simple. Once a surveyor records the actual elevations, that flat-looking yard often turns out to tilt, roll or drop more than anyone expected. Those hidden changes drive real decisions about where a house sits and where water goes.

Small Elevation Shifts You Can’t See by Eye

The human eye is bad at reading gentle slopes. A yard can fall two or three feet across its width and still look level when you stand in it. A topographic survey catches those shifts by measuring points across the whole property and connecting them into contour lines.

Those contours tell a story a walk-through cannot. They show which part of the lot sits highest, where the ground starts to drop and how steep each section really runs. For anyone planning to build, that information shapes almost every choice that follows, from foundation type to yard grading.

Following Water’s Natural Path Downhill

Water always moves to the lowest point it can reach, and the land decides that path. Survey data reveals where runoff naturally collects and which direction it travels after a heavy rain. You get to see the drainage pattern of the site before you change anything.

This matters because building in the wrong spot can dam up that flow or send it toward a foundation. Knowing the natural low points and runoff lines lets a designer work with the land rather than fight it. Sometimes the fix is as simple as shifting a structure ten feet to keep it clear of a wet corner.

How the House and Driveway Actually Fit

Slope affects far more than the building itself. It touches the driveway grade, the placement of retaining walls and how much usable flat yard you end up with. Topographic mapping lets a designer test these pieces against the real terrain instead of hoping they fit.

A few site elements depend heavily on accurate elevation data:

Driveway slope, which has to stay gentle enough to use safely
Building pad height, set to keep water away from the structure
Retaining walls, sized for the grade they hold back
Flat yard space, carved out of whatever the slope allows

Get these right on paper, and construction runs smoother. Get them wrong, and you are moving dirt and pouring concrete twice.

Catching Wet-Weather Problems on Paper First

Grading crews hate surprises, and topographic data cuts down on them. When the survey shows a low pocket that traps water or a steep run that speeds it up, the design team can plan for it early. Swales, drains and grading adjustments go into the plan before anyone clears the site.

Skipping this step is how projects blow their budgets. A drainage problem found after grading means new earthwork, new materials and lost time. The survey costs little next to that kind of rework, and it takes the guesswork out of how the ground will behave once it rains.

Handing Designers Real Ground Instead of Guesses

Architects and engineers can only design as well as the information they start with. Give them a topographic survey, and they build plans around the land that actually exists. Their grading, drainage and layout decisions rest on measured points instead of assumptions.

That head start shows up in the final result. Plans drawn on solid elevation data need fewer revisions and hold up better once construction begins. The site behaves the way the drawings predicted, which is exactly what everyone wants.

Frequently Asked Questions

What is the difference between a topographic survey and a boundary survey?

A topographic survey focuses on elevation and the shape of the land, including slopes and surface features. A boundary survey focuses on where the property lines fall. Some projects need both.

Can a lot look flat and still have drainage trouble?

Yes. A drop of even a foot or two can send water toward a house or pool it in one corner. Measured contours reveal those shifts that the eye tends to miss.

How detailed is the elevation information?

A surveyor records many points across the site and turns them into contour lines and spot elevations. The result is precise enough for engineers to design grading and drainage from it.

Do I need this survey for a small home project?

Smaller jobs do not always require one. Work that changes the grade, adds a large structure or sits near a low area usually benefits from the data, while minor repairs often get by without it.

What can go wrong without topographic data?

Projects can hit drainage problems, unexpected grading costs or a building placed in a poor spot. Measured terrain data lowers the odds of those costly surprises.
