Managing Runoff on Compact Urban Sites Starts With a Topographic Survey

Posted on July 30, 2026 by Washington DC Surveyor

A topographic survey on a compact urban lot maps something most owners never think about until it causes a problem: where every drop of water goes. These sites are nearly all hard surfaces. Roofs, pavement and walls cover the ground, so rain has almost no soil to soak into. It runs across the surface instead, following slopes measured in fractions of an inch. Capturing those slopes and the paths they create is the first real step in controlling runoff on a tight city lot.

Recording Roof Drains and Downspout Discharge Points

On a built-out lot, the roof is often the largest source of runoff, so the survey starts there. Crews locate every downspout, roof drain and scupper, then record where each one discharges. A downspout dumping onto a walkway sends water in a very different direction than one piped to the street.

Discharge points reveal the existing pattern. Water leaving the roof at the rear corner behaves differently than water directed to the front. Mapping each point shows the design team how much water lands where, which is the starting information for any drainage improvement.

Rooftop drainage often causes the complaints. A downspout discharging toward a neighbor’s foundation, or pooling against the building, creates the kind of problem that brings an owner to a surveyor in the first place. Recording those points precisely lets a designer redirect the water with intention rather than guesswork.

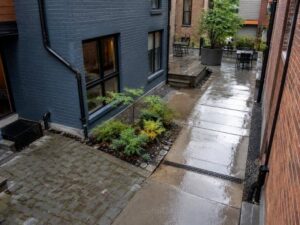

Measuring Pavement, Walkway, and Courtyard Slopes

Surface slopes control everything on a lot with little soil. Crews measure elevations closely across every paved area, including driveways, walkways, patios and courtyards. On a hard site, a slope of a fraction of an inch per foot decides whether water drains or sits.

Small differences produce visible results. A courtyard that slopes the wrong way by half an inch collects water in a corner after every rain. A walkway pitched toward a doorway sends runoff exactly where nobody wants it. The survey captures those grades so the design can correct them.

Existing drainage structures belong in the measurements too. Area drains, trench drains and channel drains all sit at fixed elevations that constrain the design. Recording their rim and invert elevations tells the engineer how much fall is available to work with and whether the existing system can handle more.

Identifying Low Areas Beside Property Lines

The edges of a compact lot are where drainage disputes begin. Water gathering along a property line either ponds against the neighbor’s wall or flows onto their land, and both cause trouble. Crews pay close attention to elevations along every boundary.

Low points get mapped precisely. A dip along the side line where two paved areas meet is exactly the spot that floods, and knowing its elevation lets a designer plan a drain or a regrade. Without the measurement, that low spot stays invisible until the next heavy rain finds it.

Flow across boundaries needs documentation. If water currently leaves the site at a particular point, that point becomes the baseline the design has to respect. Changing where runoff crosses a property line without planning invites complaints and, in many places, a code violation.

Evaluating the Impact of New Hardscape

New construction changes drainage on a lot that’s already mostly hard surface. A new patio, a wider walkway or a rear addition replaces what little previous ground remained, sending even more water across the surface. Comparing proposed elevations against the survey shows exactly what changes.

Direction shifts with each addition. Regarding a new patio can redirect water toward a neighbor or a doorway that stayed dry before. A new structure blocks a path that runoff used to follow, forcing it somewhere else. The surveyed base lets a designer see those effects before construction, not after.

Volume matters even on a small lot. Replacing a planted bed with pavement means water that used to soak in now runs off instead. On a compact site with no room to spare, that added runoff has to be managed deliberately, and the survey quantifies how much there is.

Setting Elevations for Green Infrastructure

Controlling runoff on a tight lot usually means adding features that hold or slow water, and those need precise elevations. Rain gardens, permeable pavers, planters and small underground storage systems all depend on the numbers the survey provides.

Each feature has elevation requirements. A rain garden needs to sit low enough to receive water but high enough to drain afterward. Permeable paving needs a properly graded base and an outlet. An underground chamber needs cover above it and fall to its discharge point. The survey supplies the elevations that show whether each option fits.

Outlet elevations decide what’s possible. Every storage feature eventually releases water somewhere, and that discharge point has to sit lower than the feature itself for gravity to work. On a compact lot with limited depth, the surveyed elevations often determine which green infrastructure options are realistic and which ones can’t physically fit.
