Construction Survey Methods for Keeping Buildings Aligned on Tight Urban Lots

Posted on July 14, 2026 by Washington DC Surveyor

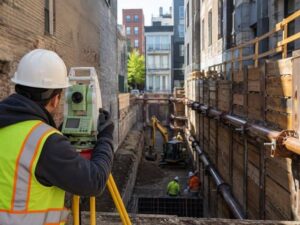

Building on a tight urban lot leaves no room for careless measurement. With little clearance on any side, the survey work behind the project has to be dependable from the very start of excavation all the way through the final wall check. A construction survey provides that foundation, keeping the new structure aligned with the design even as digging and building activity disturb the ground around it.

Urban infill projects also come with a practical challenge that suburban sites rarely face, since evidence of the true property lines can be difficult to recover once a site has already been cleared.

Recovering the Lot Geometry Before Site Disturbance

Before any excavation begins, the true shape and position of the lot need to be confirmed and marked in a way that will survive the work ahead. This early step protects the project from building around an assumed line rather than a confirmed one.

Recovering this geometry matters more on a tight lot than almost anywhere else, since even a small error in the assumed property line can push a planned building right up against, or past, an actual boundary. Getting this right before disturbance begins avoids a problem that becomes far harder to fix later.

Creating Offsets Beyond the Proposed Building Walls

Reference points placed directly where a building will eventually stand are doomed to disappear once excavation and formwork begin. Offset points, set back from the actual construction area, give the layout a reference that survives the work rather than getting buried or destroyed early in the project.

These offsets typically get placed at a known distance and angle from the final building lines, allowing the crew to recalculate the exact wall positions at any point during construction. This approach keeps accurate layout information available throughout a project where the ground itself changes constantly.

Positioning Excavation Support Near Property Limits

Shoring, temporary walls, and other excavation support structures often sit extremely close to the property line on a tight urban lot, sometimes with only inches of clearance from an adjacent building’s foundation. Precise survey control is essential for placing these support elements correctly.

A support structure positioned even slightly wrong can create real risk, both to the project itself and to the neighboring property. Careful measurement before these elements go in gives the contractor confidence that the excavation can proceed safely within the tight confines of the site.

Transferring Benchmarks Through Vertical Construction

As a building rises floor by floor, elevation control has to move upward along with it, carrying accurate height references from the original ground benchmark all the way to the highest level under construction. Any error introduced early in this chain compounds with every additional floor built on top of it.

This vertical transfer requires careful, repeated verification rather than a single measurement taken once and trusted for the rest of the project. Checking these elevations at multiple stages catches small discrepancies before they accumulate into a real problem near the top of the building.

Verifying the Completed Exterior Against the Approved Layout

Once the building’s exterior walls are complete, a final verification survey compares their actual position against the layout originally approved for the project. This check confirms that the finished structure matches the design intent, despite all the disturbance that occurred on site during construction.

This final step provides documented confidence for the project team, the property owner, and any future parties who need assurance that the building was constructed within its intended boundaries and design parameters.
